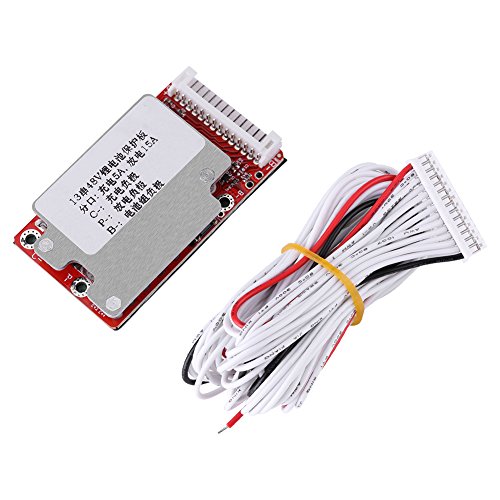

13S Li-Ion Battery Protection Board BMS - Safe Charge/Discharge for 13 Series Li-Polymer, Ternary, LiMn2O4 & LiCoO2 Batteries | Ideal for E-Bikes, Power Tools & Solar Energy Storage Systems

Features: The protection board is for 13 series Li-ion batteries, it can be used for ternary batteries, manganese acid batteries and cobalt acid batteries.Charging connector and discharging connector are separated, continuous discharging current is 15A.Charging 5A, discharging 15A, over-current 45A, suitable for electric bicycles with ≤500W motor.It has high voltage withstanding and low conduction resistance function.Stable various protective functions for charging and discharging, such as accurate overcharge protection, over-discharge protection, over current protection and short circuit protection. Specifications: Overcharge ProtectionSingle Battery Overcharge Detection Voltage 4.25V±0.05V Single Battery Overcharge Release Voltage 4.10V±0.05V Charge ProtectionRated Charging Current ≤5A Charging protection Current/Over-discharge ProtectionSingle Battery Overcharge Detection Voltage 2.50V±0.05V Single Battery Overcharge Release Voltage 3.00V±0.05V Rated discharging Current15ADischarging Protection Current 45±5A Short Circuit ProtectionRecovery ConditionDisconnecting LoadInner ResistanceB-, P- conduction resistance≤25mΩ Current ConsumptionSelf-consumption≤30uA Size L*W*H60*34*10mm / 2.36*1.33*0.39" Package Includes: 1 x Protection Board

The protection board is for 13 series Li-ion batteries, it can be used for ternary batteries, manganese acid batteries and cobalt acid batteries

Charging connector and discharging connector are separated, continuous discharging current is 15A

Charging 5A, discharging 15A, over-current 45A, suitable for electric bicycles with ≤500W motor

It has high voltage withstanding and low conduction resistance function

Stable various protective functions for charging and discharging, such as accurate overcharge protection, over-discharge protection, over current protection and short circuit protection
